Heavy-Duty Industrial Air Compressors (KRSP-18-8 to KRSP2-455-10 Series) for Cryogenic Air Separation Systems
At Suzhou Fengyun Fluid Technology Co., Ltd., we specialize in engineering and manufacturing high-efficiency, heavy-duty industrial feed air compressors designed specifically for continuous 24/7 deployment in cryogenic air separation units (ASUs) and heavy industrial gas plants. Recognized among top-tier China heavy duty industrial air compressor manufacturers and premier industrial centrifugal air compressor suppliers, our company delivers robust compressed air generation solutions ranging from the compact KRSP-18-8 rotary model to the massive KRSP2-455-10 two-stage industrial compressor platform.
As the primary frontline machinery in any cryogenic air separation process, industrial air compressors must maintain stable mass flow rates, elevated discharge pressures, and exceptional energy efficiency under demanding environmental conditions. Our KRSP series compressors integrate precision-machined rotor profiles, heavy-duty induction motors, advanced multi-stage cooling interstack exchangers, and intelligent variable frequency drive (VFD) controls. Engineered to feed ambient air directly into downstream pre-cooling chillers and molecular sieve purification beds, our compressor machinery guarantees maximum volumetric delivery, reduced specific power consumption, and decades of reliable mechanical uptime.
Direct Factory Manufacturing, Engineering Precision & Mechanical Excellence
Operating a state-of-the-art centrifugal air compressor factory, Suzhou Fengyun Fluid Technology Co., Ltd. exercises full mechanical and quality control over rotor hobbing, casing casting, dynamic impeller balancing, and system assembly. Partnering directly with experienced custom industrial centrifugal air compressor suppliers ensures that industrial project managers, EPC contractors, and air separation plant owners receive optimized compressor frames matched precisely to site elevation, ambient air temperature profiles, and downstream process pressure requirements.
In cryogenic gas generation, electricity accounts for up to 70% to 80% of total lifecycle operating expenditure (OPEX). Our engineering approach targets specific power reduction through superior aerodynamic and mechanical design. From precision-ground SKF bearing assemblies and heavy-gauge cast iron motor housings to leak-tight oil-air separation vessels, our machinery is built to withstand continuous full-load operation exceeding 8,760 hours per year without unscheduled maintenance interruptions.
Optimized Rotor Dynamics & Aerodynamics
Precision-engineered screw and centrifugal rotor profiles machined on high-precision German CNC gear grinders minimize inter-lobe blow-by clearance, achieving maximum volumetric compression efficiency and low mechanical vibration.
Heavy-Duty Electrical Motors & VFD Integration
High-torque IP55 / IE3 & IE4 premium efficiency electric motors paired with vector-controlled variable frequency drives enable seamless speed modulation, reducing electrical start-up inrush current and optimizing power draw during part-load plant operation.
Multi-Stage Thermal Management
High-surface-area shell-and-tube or air-cooled interstage heat exchangers strip heat of compression efficiently, keeping inlet air temperatures low for downstream molecular sieve purifiers while minimizing thermal expansion stresses on compressor casings.
KRSP Compressor Series Product Lineup & Engineering Configurations
Our KRSP industrial air compressor family encompasses a scalable spectrum of power ratings and compression stages, allowing custom system matching for small modular nitrogen generators up to massive metallurgical air separation complexes:
Series 1: KRSP Compact & Mid-Range Rotary Screw Air Compressors (18 kW to 90 kW)
Designed for modular skid-mounted air separation units, localized nitrogen generators, and mid-sized industrial utility stations requiring quiet, compact, and highly reliable compressed air supply.
1. KRSP-18-8 to KRSP-37-10 Modular Compressor Series
Engineered for small-scale gaseous nitrogen generation and containerized ASU skids. Features direct-coupled 18 kW to 37 kW drive motors with low noise enclosures and internal multi-stage oil filtration systems guaranteeing low oil carryover (< 2 ppm).
Technical Specs: Motor Power: 18 kW to 37 kW; Flow Rate: 2.5 m³/min to 6.2 m³/min; Discharge Pressure: 0.8 MPa to 1.0 MPa; Direct drive coupling.
2. KRSP-45-8 to KRSP-90-10 Mid-Duty Industrial Compressors
Heavy-duty air-cooled and water-cooled rotary screw models designed for medium industrial gas plants. Features heavy-duty intake air filters, touch-screen PLC controllers, and optional integrated VFD speed regulation.
Technical Specs: Motor Power: 45 kW to 90 kW; Flow Rate: 7.8 m³/min to 16.5 m³/min; Discharge Pressure: 0.8 MPa to 1.0 MPa; Touchscreen PLC HMI.
Series 2: KRSP Heavy-Duty Large Single-Stage & Two-Stage Compressors (110 kW to 250 kW)
Built for medium-to-large cryogenic air separation facilities supplying continuous oxygen and nitrogen to chemical refineries, glass furnaces, and healthcare pipeline networks.
1. KRSP-110-8 to KRSP-250-10 High-Volume Compressor Platform
High-capacity single-stage rotary compressor platforms equipped with heavy cast-iron gearboxes and high-efficiency oil cooling radiators designed for ambient temperatures up to +45°C.
Technical Specs: Motor Power: 110 kW to 250 kW; Flow Rate: 20.2 m³/min to 45.0 m³/min; Working Pressure: 0.8 MPa to 1.0 MPa; Water-cooled or heavy air-cooled configurations.

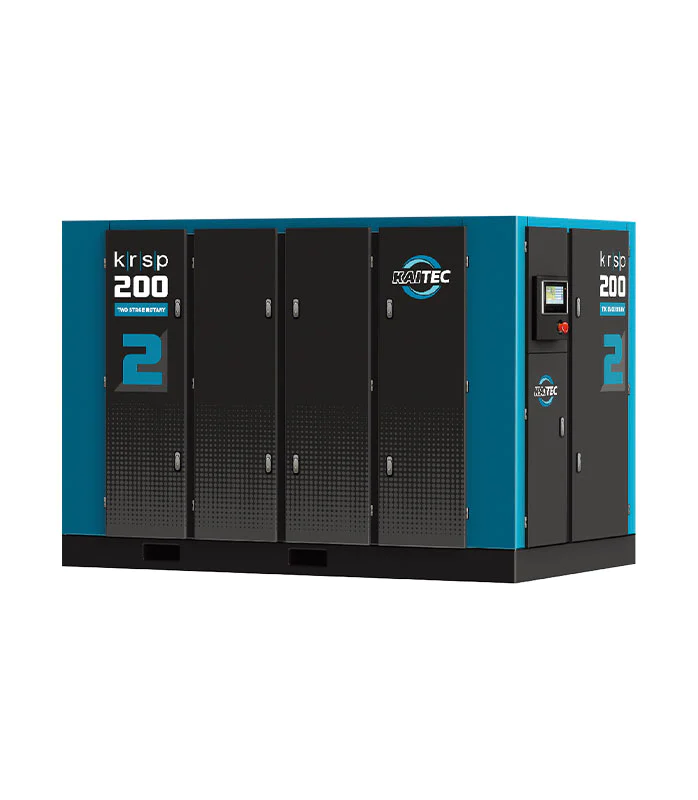

2. KRSP2 Series Energy-Saving Two-Stage Rotary Compressors
Features dual rotor airends operating in series with interstage oil injection cooling. By reducing the compression ratio per stage, internal leakage is minimized, yielding a 10% to 15% power savings over single-stage designs.
Technical Specs: Motor Power: 132 kW to 250 kW; Flow Rate: 25.5 m³/min to 52.0 m³/min; Two-stage compression efficiency boost; Modbus RS485 communication.
Series 3: KRSP2 Heavy-Duty Two-Stage & Industrial Centrifugal Machinery (280 kW to 455 kW)
The premier flagship machinery line engineered for large tonnage cryogenic air separation plants and metallurgical air supply systems. Operating from our specialized China centrifugal air compressor factory, these units deliver massive atmospheric air mass flows with unrivaled thermodynamic efficiency.
KRSP2-280-8 to KRSP2-455-10 High-Tonnage Air Separation Feed Compressors
High-voltage (6kV/10kV) or low-voltage heavy-duty compressor stations engineered specifically for continuous baseline feed air delivery to ASU cold boxes. Features dual two-stage rotor assemblies or dynamic multi-stage centrifugal impellers paired with heavy-duty oil-gas separation vessels and central DCS integration.
Technical Specs: Motor Power: 280 kW to 455 kW; Flow Rate: 55.0 m³/min to 88.5 m³/min (3,300 to 5,310 Nm³/h); Discharge Pressure: 0.8 MPa to 1.0 MPa; Central DCS integration.
KRSP Compressor Family Technical Specifications Matrix
The following specification matrix provides a comparative technical summary across our key KRSP industrial compressor models, detailing motor power ratings, volumetric flow rates, discharge pressures, cooling types, and control interfaces:
| Compressor Model |
Motor Power Rating |
Volumetric Flow Capacity |
Discharge Working Pressure |
Compression Stage Design |
Cooling System Method |
PLC Automation & Telemetry |
| KRSP-18-8 / KRSP-18-10 |
18 kW (25 HP) |
2.5 - 3.1 m³/min |
0.8 - 1.0 MPa |
Single-Stage Rotary Screw |
Air-Cooled Radiator |
Microprocessor Controller / Modbus |
| KRSP-45-8 / KRSP-45-10 |
45 kW (60 HP) |
7.8 - 8.5 m³/min |
0.8 - 1.0 MPa |
Single-Stage Rotary Screw |
Air-Cooled / Water-Cooled |
Siemens Color Touch HMI + VFD Option |
| KRSP-110-8 / KRSP-110-10 |
110 kW (150 HP) |
20.2 - 22.5 m³/min |
0.8 - 1.0 MPa |
Single-Stage Heavy Duty |
Water-Cooled Shell & Tube |
PLC Controller + Cloud IoT Gateway |
| KRSP2-200-8 / KRSP2-200-10 |
200 kW (270 HP) |
38.5 - 42.0 m³/min |
0.8 - 1.0 MPa |
Two-Stage Energy Saver |
Heavy Duty Water-Cooled |
Centralized Plant DCS Interface |
| KRSP2-455-8 / KRSP2-455-10 |
455 kW (610 HP) |
80.5 - 88.5 m³/min |
0.8 - 1.0 MPa |
Two-Stage / Centrifugal Frame |
Industrial Water-Cooled Intercooler |
Dual Redundant DCS + SCADA Gateway |
Target Application Scenarios & Required Proposal Inquiry Parameters
KRSP series heavy-duty industrial air compressors represent the primary mechanical workhorse for continuous compressed air supply across major industrial gas production facilities and heavy manufacturing sectors:
Cryogenic Air Separation Units (ASU Feed Air)
Delivers steady, continuous atmospheric air flow to pre-cooling chillers and molecular sieve purification beds prior to sub-zero fractional distillation in oxygen, nitrogen, and argon cold boxes.
Steel Metallurgy & Non-Ferrous Smelting
Provides reliable high-volume process compressed air for oxygen enriched blast furnace ironmaking, pneumatic conveying of fluxing agents, and shop floor pneumatic tools.
Chemical Processing & Petrochemical Plants
Supplies constant instrument-grade air and process air for coal gasifiers, oxidation reactors, pneumatic valve actuation, and hydrocarbon storage vessel purging.
Glass Works & Semiconductor Cleanroom Utility
Powers baseline compressed air networks for float glass tin bath sealing, oxy-fuel burner air mixing, cleanroom pneumatic tools, and high-purity nitrogen plant pre-feed streams.
Information Required for Custom Technical & Financial Quotations
To assist our application engineering team in selecting the optimal KRSP compressor model frame, motor voltage, cooling exchanger type, and VFD drive options, buyers should provide the following site parameters:
1. Required Volumetric Flow Rate: Total required compressed air delivery in m³/min, Nm³/h, or CFM.
2. Working Discharge Pressure: Target battery limit pressure (standard 0.8 MPa to 1.0 MPa or custom requirements).
3. Ambient Site Conditions: Local altitude, atmospheric pressure, maximum/minimum summer and winter ambient temperatures, and humidity.
4. Cooling Medium Availability: Preference for air-cooled radiators or water-cooled shell-and-tube exchangers (including cooling water supply temperature and pressure).
5. Local Electric Power Utilities: Available power supply parameters (e.g., 380V/415V/6kV/10kV, 50Hz or 60Hz) and preferred motor efficiency class.
Installation Guidance, Acceptance Testing Standards & Lifecycle Support
Suzhou Fengyun Fluid Technology Co., Ltd. provides full EPCM engineering support for heavy industrial compressor installations. Our experienced field service engineers assist project teams from concrete foundation preparation and air ducting layout through electrical wiring, vibration testing, and performance guarantee verification.
Field Installation & Alignment Supervision
Our technical specialists supervise machine skid leveling, main discharge piping connection, cooling water manifold alignment, and electrical power wiring to ensure zero structural resonance and leak-free operation.
FAT & SAT Testing Standards
Factory Acceptance Testing (FAT) certifies motor insulation resistance, full-speed rotor dynamic balancing, oil circuit pressure integrity, and PLC safety trips. Site Acceptance Testing (SAT) verifies design flow rate, discharge pressure stability, power consumption, and thermal balance.
OEM Spare Parts & Cloud IoT Monitoring
We maintain a comprehensive inventory of OEM maintenance consumables—including precision air intake filters, synthetic compressor lubricants, oil separator elements, and valve kits—paired with 24/7 cloud IoT diagnostic telemetry.
Frequently Asked Questions (FAQ)
1. Why is choosing the right feed air compressor critical for cryogenic air separation plant performance?
In a cryogenic air separation unit (ASU), the air compressor provides the baseline mechanical energy that drives the entire gas separation process. It elevates atmospheric air pressure so that downstream molecular sieves can remove moisture and CO2, while supplying compressed gas to refrigeration turbo expanders. Because compressor electricity accounts for up to 80% of total ASU operating costs, choosing a high-efficiency KRSP or KRSP2 compressor directly lowers per-Nm³ gas production costs while ensuring stable air mass flow into cold box distillation columns.
2. What energy efficiency advantages does a KRSP2 two-stage compressor offer over single-stage models?
KRSP2 two-stage rotary screw compressors split the total pressure ratio between two distinct rotor sets in series, utilizing interstage coolant injection to cool air between stages. This approach lowers the compression ratio across each individual stage, reducing internal air back-leakage and approaching an ideal thermodynamic isothermal compression process. As a result, KRSP2 two-stage models achieve 10% to 15% lower specific power consumption (kW per m³/min) compared to single-stage compressors of equivalent motor power.
3. Should my facility select an air-cooled or water-cooled industrial compressor system?
Air-cooled compressors are ideal for small-to-medium power ratings (up to 90 kW) or sites where industrial cooling water infrastructure is unavailable or costly to install. Water-cooled compressors are strongly recommended for high-power models (110 kW to 455 kW) and large-scale cryogenic gas plants. Water cooling provides stable heat dissipation regardless of summer ambient air temperature spikes, maintains lower interstage air temperatures, and operates quietly within indoor compressor rooms.
4. How does VFD variable frequency speed regulation improve compressor efficiency during part-load air separation operations?
When downstream oxygen or nitrogen consumption decreases, standard fixed-speed compressors must cycle between loaded compression and unloaded idle running, consuming up to 30% of full power even while idling. Equipped with an integrated VFD drive, the KRSP compressor automatically lowers motor RPM to match actual compressed air demand, keeping working pressure constant while reducing electrical power draw in direct proportion to air output, eliminating idle power waste.
5. What remote monitoring and predictive maintenance features are provided with your cloud IoT platform?
Our cloud IoT gateway connects directly to the compressor PLC, transmitting live operating telemetry—including motor current draw, discharge air pressure, air/oil temperatures, oil filter differential pressure, and bearing vibration spectrums. The IoT platform utilizes predictive algorithms to analyze performance trends, alerting plant managers before filter clogging, oil degradation, or mechanical wear leads to unscheduled compressor downtime.
