Custom Industrial Cryogenic Distillation Columns & Fractional Separation Cold Box Internals
Suzhou Fengyun Fluid Technology Co., Ltd. is a premier engineering equipment manufacturer and specialized process provider for industrial cryogenic air separation units (ASUs). Recognized among elite China cryogenic distillation column manufacturers, we engineer, fabricate, erect, and commission high-precision fractional distillation columns, main reboiler-condensers, and argon separation cold box internals. Supported by an experienced engineering staff of 86 technical specialists, our custom distillation vessels perform deep thermodynamic separation of atmospheric air into ultra-high-purity oxygen, nitrogen, and argon down to extreme sub-zero temperatures of -196°C.
Serving global steelmakers, petrochemical complexes, semiconductor wafer fabs, and industrial gas producers, our company manufactures full-spectrum distillation architectures—including lower high-pressure columns, upper low-pressure columns, crude and refined argon side-arm columns, and specialized 6N electronic nitrogen towers. Utilizing advanced structured aluminum packing, high-efficiency liquid distributors, and low-temperature alloy vessel shells, our custom distillation columns deliver exceptional mass-transfer efficiency, low column pressure drop, and decades of uninterrupted operational uptime.
Direct Factory Manufacturing, Metallurgical Standards & Column Engineering
Partnering directly with established cryogenic air separation distillation column suppliers provides plant engineers, EPC contractors, and gas utility directors with complete mechanical transparency, customized tray or packing design, direct factory pricing, and lifetime technical support. As the thermodynamic heart of any air separation plant, the distillation column executes continuous vapor-liquid mass transfer, boiling liquid oxygen at the bottom reboiler while refluxing pure liquid nitrogen at the column top.
At Suzhou Fengyun Fluid Technology Co., Ltd., our manufacturing facility executes precision vessel shell rolling, automatic longitudinal and circumferential submerged arc welding, structured packing installation, and liquid distributor levelling under strict ISO 9001, ASME Section VIII Division 1, and GB pressure equipment directives. All cold box columns are constructed from certified cryogenic-grade aluminum alloys (5083, 6061-T6) or low-carbon austenitic stainless steels (SS304L, SS316L) to prevent low-temperature ductile-to-brittle transition. Every column section undergoes 100% non-destructive testing (NDT), X-ray weld examination, hydrostatic testing, and high-sensitivity helium mass spectrometer leak detection prior to dispatch.
High-Density Structured Packing
Corrugated aluminum sheet packing provides huge specific surface area per unit volume (up to 500 m²/m³), maximizing gas-liquid contact area while drastically reducing vapor pressure drop compared to traditional tray columns.
Precision Liquid Distribution Systems
Custom-designed trough and pipe liquid distributors engineered via Computational Fluid Dynamics (CFD) ensure uniform liquid reflux irrigation across the entire packing bed cross-section, eliminating wall-flow channeling.
Integrated Main Reboiler-Condensers
Vacuum-brazed aluminum plate-fin reboilers immersed in liquid oxygen sumps condense rising gaseous nitrogen from the lower column while evaporating liquid oxygen in the upper column with minimal temperature approach.
Selectable Cryogenic Distillation Column Configurations & Product Series
To accommodate varying plant capacities, target product purities, and cold box height limits, Suzhou Fengyun Fluid Technology presents a complete lineup of cryogenic fractionation column designs. Operating from our specialized customized cryogenic distillation column factory, we build custom column vessels to fit exact project specifications:
Series 1: Double-Column Fractionation Systems (Lower & Upper Column Pair)
The classical double-column process configuration utilized in standard industrial air separation plants. Combines a lower high-pressure column (~0.5 to 0.6 MPa) that performs preliminary air enrichment and an upper low-pressure column (~0.13 to 0.15 MPa) that produces high-purity oxygen and nitrogen products.
1. Integrated Steelworks & Metallurgical Oxygen Column System
Engineered for large-tonnage air separation units delivering 99.6% purity gaseous oxygen and 99.999% purity nitrogen. Features structured aluminum packing in the upper column to minimize column head pressure and reduce air compressor power consumption.
Technical Specs: Column Diameters: 800 mm to 4,500 mm; Capacity Range: 2,000 Nm³/h to 60,000 Nm³/h; Operating Pressure: 0.13 MPa to 0.6 MPa; Material: Cryogenic Al 5083.
2. High-Pressure Internal Compression Column Vessel Pair
Designed specifically for internal compression air separation plants where liquid oxygen is pumped directly from the upper column sump. Reinforced vessel walls withstand internal liquid pressure head and dynamic pump suction forces.
Technical Specs: Liquid Sump Working Pressure: 0.2 MPa to 0.8 MPa; Submerged pump suction collector box; Integrated differential pressure liquid level transmitters.
Series 2: Argon Recovery Side-Arm Distillation Columns (Crude & Refined Argon)
As premier custom cryogenic distillation column manufacturers, we build specialized side-arm argon columns that extract argon gas (~0.93% of atmospheric air) from the upper column argon draw point, refining it into pure liquid argon without hydrogen deoxo reactions.
1. Fully Packed Crude Argon Distillation Column (No-Hydrogen Process)
Utilizes ultra-high-density structured packing across tall column heights to separate argon from oxygen based on minute boiling point differences (-185.9°C vs -183.0°C), reducing oxygen content in crude argon down to ≤ 1 ppm.
Technical Specs: Column Height: 15 m to 35 m (split-column execution available); Crude Argon Purity: O2 ≤ 1.0 ppm; Zero hydrogen addition required.
2. Pure Liquid Argon Rectification Column (Pure Argon Tower)
Strips residual nitrogen from crude argon to yield 99.999% (5N) pure liquid argon suitable for photovoltaic silicon crystal pulling, stainless steel AOD refining, and semiconductor shielding gas.
Technical Specs: Argon Purity: 99.999% (N2 ≤ 3 ppm, O2 ≤ 1 ppm); Top condenser cooled by liquid nitrogen; Automated product withdrawal control.
Series 3: Ultra-High-Purity 6N Electronic Grade Nitrogen Columns
Designed specifically for microelectronics wafer fabs, solar cell manufacturing, and flat-panel display packaging lines where nitrogen gas purity must exceed 99.9999% with trace oxygen levels controlled below 0.1 ppm.
Single & Double-Rectification Ultra-Pure Electronic Nitrogen Tower
Fabricated with electropolished austenitic stainless steel inner vessel walls and high-purity internal distributors, eliminating trace particle release and outgassing in semiconductor carrier nitrogen gas streams.
Technical Specs: Nitrogen Purity: 99.9999% (6N) (O2 ≤ 0.1 ppm, CO ≤ 0.1 ppm); Surface Roughness: Ra ≤ 0.4 μm electropolished finish; Helium leak rate < 1×10⁻⁹ mbar·L/s.
Series 4: Modular Modularized Column Sections & Cold Box Assemblies
Engineered for rapid site installation and overseas containerized shipping. Tall distillation columns are shop-fabricated in modular flanged sections or pre-installed inside vertical cold box steel C-channels.

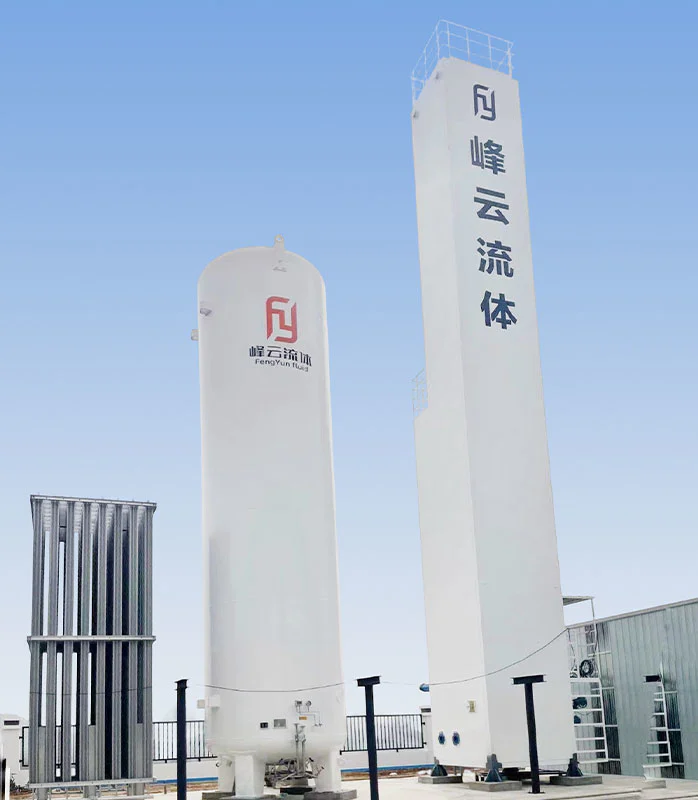

Modular Shop-Assembled Column Cold Box Module
Pre-piped and pre-wired column sections enclosed in structural steel cold box frames, packed with expanded perlite or vacuum powder insulation prior to factory dispatch, reducing site erection time by up to 50%.
Technical Specs: Flow Capacity: 500 Nm³/h to 5,000 Nm³/h; 85% factory pre-assembled; Integrated cold box insulation casing.
Technical Specifications & Column Performance Parameter Matrix
The following comparative specification matrix details the design parameters, target gas purities, working pressures, internal packing selections, and structural materials across our primary cryogenic distillation column lines:
| Column Configuration |
Target Product & Separation Duty |
Achievable Gas Purity |
Working Pressure Range |
Column Internals Type |
Vessel Construction Materials |
Instrumentation & Level Transmitters |
| Standard ASU Double Column Pair |
Oxygen & Nitrogen Co-production |
O2: 99.6%; N2: 99.999% (5N) |
Lower: 0.5-0.6 MPa; Upper: 0.13-0.15 MPa |
Structured Al Packing / Sieve Trays |
Cryogenic Aluminum Alloy 5083 |
Differential Pressure Level Transmitters + RTD |
| Internal Compression Oxygen Column |
High-Pressure Liquid Oxygen Sump |
O2: 99.5% - 99.8% |
Sump: 0.2 - 0.8 MPa |
High-Capacity Corrugated Sheet Packing |
Austenitic Stainless Steel SS304L / Al 5083 |
Submerged LOX Pump Suction Collector Control |
| Crude Argon Side Column (No-H2) |
Argon/Oxygen Separation |
Crude Argon: O2 ≤ 1.0 ppm |
0.13 - 0.16 MPa |
Ultra-High-Density Structured Al Packing |
Aluminum Alloy 5083 / 6061-T6 |
Mass Flow Controllers + Gas Chromatograph |
| Pure Refined Liquid Argon Tower |
Argon/Nitrogen Final Rectification |
Refined Argon: 99.999% (5N) |
0.12 - 0.15 MPa |
High-Efficiency Structured Packing |
Cryogenic Stainless Steel SS304L |
Liquid Nitrogen Reflux Condenser Control |
| 6N Ultra-Pure Semiconductor Tower |
Electronic Grade Nitrogen Isolation |
Nitrogen: 99.9999% (6N) (O2 ≤ 0.1 ppm) |
0.6 - 1.2 MPa |
Electropolished SS Distributors / Trays |
Electropolished Stainless Steel SS316L |
Continuous Trace Gas Analyzers (O2/CO/H2O) |
Target Application Scenarios & Engineering Data Requirements
Cryogenic distillation columns represent the essential thermodynamic separation engine across major industrial gas production facilities and high-purity processing sectors:
Steel Metallurgy & Blast Furnace Oxygen Supply
Powers large-tonnage double-column air separation cold boxes supplying massive baseline oxygen streams for blast furnaces and BOF converter steelmaking.
Petrochemical Refineries & Coal Chemical Synthesis
Generates high-pressure oxygen for partial oxidation gasifiers and continuous pure nitrogen for hydrocarbon tank blanketing and catalyst pneumatic transfer.
Semiconductor Fabs & Solar Photovoltaics
Provides ultra-clean 6N nitrogen distillation towers and 5N argon recovery columns for silicon wafer processing, lithography purging, and crystal pulling.
Merchant Industrial Gas Production & Liquefiers
Feeds bulk liquid oxygen, liquid nitrogen, and liquid argon storage tanks for regional gas distributors and road tanker filling stations.
Information Required for Custom Column Technical Quotes
To enable our column process engineers to calculate theoretical tray/packing counts, model HETP (Height Equivalent to a Theoretical Plate), size column shell diameters, and design liquid distributors, buyers should provide the following baseline inputs:
1. Feed Air Flow & Condition: Compressed air mass flow rate entering the column (Nm³/h), pressure (MPa), and temperature (°C).
2. Required Product Gas Purities: Oxygen purity (99.5% or 99.8%), nitrogen purity (99.999% or 99.9999%), and crude/refined argon yield requirements.
3. Battery Limit Delivery Pressures: Target product discharge pressures at upper/lower column outlets or pump discharge boundaries.
4. Site Footprint & Cold Box Height Constraints: Maximum allowable cold box vertical lifting height and crane capacity limits.
5. Pressure Vessel Design Codes: Specified vessel compliance standards (ASME Section VIII, PED 2014/68/EU, GB 150, or SQL).
Field Erection Supervision, FAT/SAT Acceptance Standards & Maintenance
Suzhou Fengyun Fluid Technology Co., Ltd. provides full EPCM project support for cryogenic distillation column installations. Our experienced field engineers guide clients through civil pad layout, vertical crane lifting, column flange alignment, perlite insulation packing, and cold commissioning.
Field Crane Lifting & Alignment
Our technical specialists supervise vertical column lifting, internal packing level verification, cold box structural alignment, and cryogenic flange welding to ensure complete structural stability.
FAT & SAT Testing Protocol
Factory Acceptance Testing (FAT) validates pressure vessel hydro-testing, X-ray weld integrity, and distributor leveling. Site Acceptance Testing (SAT) verifies column cooldown timing, product purity achievement, and stability under load turndown.
OEM Spare Parts & Cloud Telemetry
We supply replacement liquid distributor nozzles, structured packing modules, reboiler heat exchanger cores, and level transmitter sensors, paired with 24/7 cloud IoT telemetry for predictive maintenance monitoring.
Frequently Asked Questions (FAQ)
1. What is the thermodynamic function of the double-column system (lower and upper column) in cryogenic air separation?
In a cryogenic double-column ASU, the lower column operates at higher pressure (~0.5 to 0.6 MPa) to perform preliminary separation of feed air into nitrogen gas at the top and oxygen-enriched liquid air (~38% O2) at the bottom. The main reboiler-condenser thermally links the two columns: condensing top nitrogen gas from the lower column creates liquid nitrogen reflux, while simultaneously boiling bottom liquid oxygen in the upper column (~0.13 to 0.15 MPa). The upper column then performs final fractional distillation to produce 99.6% oxygen and 99.999% nitrogen.
2. How does structured aluminum packing compare to traditional sieve trays in cryogenic distillation columns?
Structured aluminum packing consists of corrugated sheet metal layers stacked in criss-cross patterns. Compared to traditional sieve trays, structured packing provides significantly lower pressure drop per theoretical stage (reduced by up to 80%), higher liquid/gas handling capacity, and lower liquid hold-up. Lower column pressure drop allows the main feed air compressor to operate at a lower discharge pressure, drastically reducing overall electricity consumption in large-scale ASUs.
3. How is high-purity liquid argon (99.999%) isolated using side-arm crude and refined argon distillation columns?
Argon gas (~0.93% of air) accumulates in the middle section of the upper low-pressure column where oxygen content is around 85% to 92%. A side vapor stream is drawn into a tall crude argon column packed with high-density structured packing, where oxygen is separated without needing hydrogen catalytic deoxo systems. The resulting crude argon (O2 ≤ 1 ppm) is then fed into a pure argon rectification column to strip residual nitrogen, producing 99.999% (5N) pure liquid argon.
4. What materials of construction and welding standards are required for sub-zero column vessels operating down to -196°C?
All cryogenic column shells, internal trays, packing layers, and piping manifolds operating at sub-zero temperatures are fabricated from cryogenic-grade aluminum alloys (such as Al 5083 and 6061-T6) or low-carbon austenitic stainless steels (SS304L and SS316L). These face-centered cubic (FCC) metals do not undergo cryogenic ductile-to-brittle transition at -196°C. All welds are executed using automated GTAW/GMAW processes and subjected to 100% X-ray radiographic inspection and helium leak testing.
5. What turnkey manufacturing and field erection support does Suzhou Fengyun Fluid Technology provide for custom column replacements?
As direct equipment manufacturers, Suzhou Fengyun Fluid Technology provides complete turnkey support including process calculation, pressure vessel design, shop fabrication, vertical crane lifting supervision, cold box flange piping connection, FAT/SAT acceptance testing, and operator training. Post-commissioning, clients benefit from 24/7 cloud IoT remote diagnostic telemetry, predictive maintenance alerts, and lifetime OEM spare parts supply.
