Custom Industrial Cryogenic Oxygen Generation Systems & On-Site Liquid Oxygen Plants
Suzhou Fengyun Fluid Technology Co., Ltd. is a premier equipment manufacturer and engineering solutions provider specializing in industrial cryogenic oxygen generation systems. As leading China cryogenic oxygen generation system manufacturers and global industrial liquid oxygen generation plant suppliers, we engineer, build, deploy, and maintain complete cryogenic air separation systems that produce high-purity gaseous oxygen (GOX) and liquid oxygen (LOX) for heavy industrial consumers worldwide.
Engineered to operate continuously under extreme industrial demands, our cryogenic oxygen plants convert ambient air into concentrated oxygen streams via deep cryogenic liquefaction and fractional distillation at temperatures as low as -183°C. Supported by our experienced technical team of 86 engineers, our custom installations supply reliable, cost-effective, and safe oxygen generation for blast furnace steelmaking, non-ferrous metal smelting, chemical gasification, glass melting furnaces, pulp bleaching, and medical healthcare pipeline networks.
Direct Factory Manufacturing, Quality Control Standards & Engineering Positioning
Engaging directly with an established customized cryogenic oxygen plant factory gives plant managers and procurement executives complete mechanical transparency, direct factory pricing, and lifetime technical support without intermediate vendor markups. Unlike non-cryogenic pressure swing adsorption (PSA) or VPSA systems that face strict oxygen purity ceilings around 93% to 95%, cryogenic oxygen fractional distillation routinely delivers continuous purity ratings between 99.5% and 99.8% with zero argon or nitrogen dilution.
At Suzhou Fengyun Fluid Technology Co., Ltd., our in-house manufacturing center exercises comprehensive quality control across all core pressure vessels, molecular sieve purification beds, aluminum plate-fin heat exchangers, distillation cold boxes, and liquid oxygen pumps. Every unit is designed and fabricated in compliance with ISO 9001, ASME Section VIII, and international pressure equipment directives, undergoing 100% non-destructive testing (NDT), X-ray weld inspection, hydro-static testing, and high-sensitivity helium mass spectrometer leak detection before dispatch.
High-Purity Distillation (Up to 99.8%)
Multi-stage fractional distillation columns with structured aluminum packing ensure precision separation of atmospheric gases, producing industrial oxygen streams stripped of trace impurities for critical chemical synthesis and metal processing.
Internal Compression Safety Design
Our advanced internal compression process utilizes submerged cryogenic liquid pumps to pressurize liquid oxygen before vaporization against booster air, eliminating gaseous oxygen compressors and drastically reducing mechanical friction and fire risks.
Automated DCS Control & Smart IoT
Siemens DCS and PLC supervisory networks monitor temperature gradients, pressure levels, and output purities in real time, connecting to our cloud IoT platform for automated load regulation, predictive fault alerts, and 24/7 remote diagnostics.
Selectable Cryogenic Oxygen Generator Series & Process Configurations
To accommodate diverse gas consumption profiles, site footings, and delivery pressure requirements, Suzhou Fengyun Fluid Technology presents a complete lineup of cryogenic oxygen system architectures. Each product series represents a modular, selectable engineering baseline:
Series 1: Internal Compression Gaseous Oxygen (GOX) Pipeline Plants
Designed for medium to large-scale industrial gas consumers requiring continuous, high-pressure gaseous oxygen delivered directly to site supply pipelines. Utilizes submerged liquid oxygen pumps inside the cold box to pressurize liquid oxygen before warming it in main brazed aluminum heat exchangers.
1. Metallurgical & Steelworks Oxygen Plant
Provides massive baseline oxygen streams for oxygen enrichment in blast furnace ironmaking, basic oxygen furnace (BOF) blowing, and electric arc furnace (EAF) melting. Features robust operational stability and automatic load-following capabilities.
Technical Specs: Oxygen Purity: 99.5% to 99.8%; Capacity Range: 2,000 Nm3/h to 50,000 Nm3/h; Pipeline Delivery Pressure: 0.5 to 3.5 MPa.
2. Chemical Processing & Gasification Oxygen System
Engineered for partial oxidation, ethylene oxide synthesis, and coal gasification reactors requiring ultra-reliable oxygen delivery at elevated pressures with stringent safety interlock controls.
Technical Specs: Oxygen Purity: ≥ 99.6%; Discharge Pressure: Up to 4.0 MPa; Fully redundant instrument and ESD trip safety loops.
Series 2: Bulk Liquid Oxygen (LOX) Merchant Generation Plants
Tailored for merchant liquid gas suppliers and regional industrial gas distributors. As specialized China liquid oxygen generation system manufacturers, we build high-efficiency merchant liquefiers featuring heavy booster turbo expanders to maximize liquid yields.
1. Merchant Bulk Liquid Oxygen Liquefaction Plant

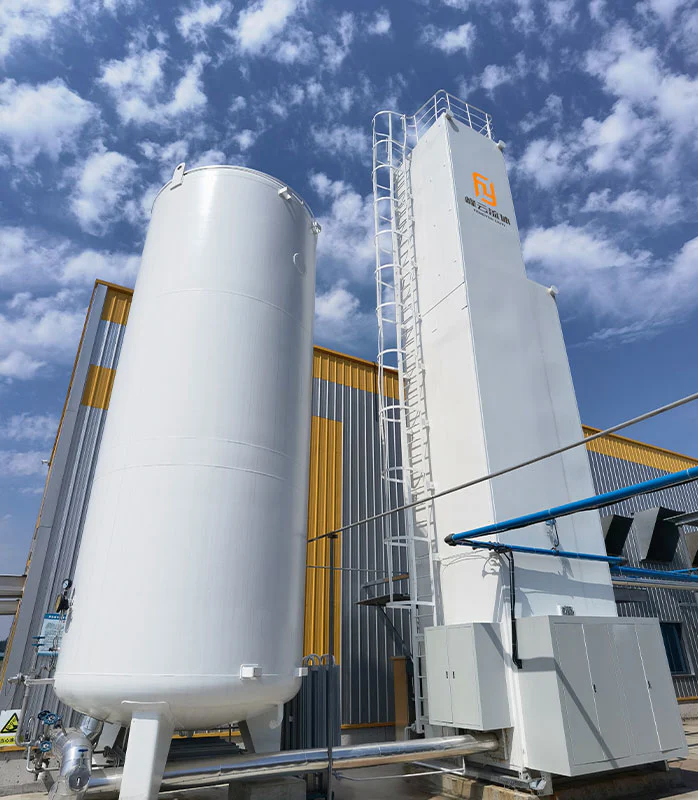

Produces 100% liquid oxygen for filling cryogenic bulk storage tanks, road tankers, and cylinder filling plants. Incorporates cold box vacuum powder insulation casing to eliminate thermal losses.
Technical Specs: Liquid Yield: 30 tons/day to 600 tons/day; LOX Purity: 99.6%; Automated bulk tank bay loading manifold.
2. Dual GOX / LOX Co-Production Oxygen Plant
Provides baseline gaseous oxygen to site pipelines while diverting 10% to 30% of system capacity into liquid oxygen storage tanks, creating an on-site strategic liquid buffer for peak demand shaving and emergency backup.
Technical Specs: Simultaneous GOX/LOX production; Adjustable liquid fraction tuning; Automatic backup vaporizer startup.
Series 3: Medical Grade Oxygen Generation & Cylinder Filling Systems
Designed to meet international pharmacopeia standards for healthcare facilities, regional medical gas hubs, and emergency oxygen reserve filling stations.
Medical Pipeline Gas & Cylinder Filling Oxygen Plant
Combines pipeline gaseous oxygen delivery for hospital networks with high-pressure liquid or gaseous cylinder filling ramps (15.0 to 20.0 MPa), backed by continuous CO, CO2, and moisture monitoring gas analyzers.
Technical Specs: Oxygen Purity: ≥ 99.5%; Oil-free design; Dual pressure relief safety manifolds; Continuous medical gas certification logging.
Series 4: Modular Containerized & Skid-Mounted Cryogenic Oxygen Units
Built inside our state-of-the-art high purity industrial oxygen plant factory, these compact, pre-fabricated skids simplify overseas transport and reduce on-site installation timelines for mining camps, remote industrial processing plants, and temporary sites.
Modular Plug-and-Play On-Site Oxygen Generator Skid
Pre-assembled on heavy-duty structural steel skids with integrated piping, wiring, PLC control panels, and insulation casing. Factory tested prior to shipment for quick plug-and-play installation on simple concrete pad foundations.
Technical Specs: Capacity: 300 Nm3/h to 3,000 Nm3/h; 85% factory pre-commissioned; Touchscreen operator HMI with remote cloud gateway.
Technical Specifications & Operating Parameters Matrix
The following specification matrix details the performance thresholds, product gas purities, capacity scales, delivery pressures, and structural materials across our principal cryogenic oxygen generator lines:
| System Configuration |
Product Gas Phase |
Achievable Oxygen Purity |
Nominal Capacity Scale |
Working Discharge Pressure |
Primary Construction Materials |
Automation & PLC Interface |
| Internal Compression Metallurgical GOX |
Gaseous Oxygen (GOX) |
99.5% - 99.8% |
2,000 to 50,000 Nm3/h |
0.5 - 3.5 MPa (liquid pump) |
Austenitic SS316L / Cryogenic Al Alloy |
Redundant Siemens DCS + WinCC SCADA |
| Chemical Gasification High-Press. GOX |
High-Pressure GOX Stream |
≥ 99.6% |
5,000 to 40,000 Nm3/h |
1.5 - 4.0 MPa |
Special Oxygen Bronze / SS316L Piping |
Fully Redundant Safety ESD Interlock Loop |
| Bulk Merchant Liquid Oxygen Plant |
100% Liquid Oxygen (LOX) |
99.6% Liquid Grade |
30 to 600 tons/day liquid |
0.2 - 0.8 MPa storage filling |
Cryogenic SS Inner Tank / Carbon Steel Shell |
Automated Tank Bay Metering + IoT Gateway |
| Dual GOX / LOX Co-Production ASU |
Gaseous + Liquid Oxygen |
99.5% - 99.8% |
1,000 to 30,000 Nm3/h |
0.6 - 2.5 MPa pipeline |
Aluminum 5083 Distillation Column / SS304 |
Siemens S7-1500 PLC + Cloud Telemetry |
| Modular Containerized Oxygen Skid |
Gaseous Oxygen Skid |
99.5% - 99.6% |
300 to 3,000 Nm3/h |
0.6 - 1.2 MPa |
Structural Carbon Steel Base / Al Cold Box |
Integrated Touch HMI + Remote Diagnostics |
Target Application Scenarios & Proposal Data Requirements
Cryogenic oxygen generation remains the industry gold standard for large-scale operations requiring absolute purity stability, high flow rates, and low unit production costs. As an established industrial liquid oxygen generation plant suppliers, we customize oxygen plant designs to support diverse industrial operations:
Steel & Iron Metallurgy Blast Furnaces
Delivers continuous high-volume oxygen for blast furnace enrichment, basic oxygen furnace (BOF) blowing, and electric arc furnace (EAF) scrap melting, increasing melt rates and reducing fuel consumption.
Petrochemicals & Coal Chemical Synthesis
Provides high-pressure gaseous oxygen for partial oxidation gasifiers, ethylene oxide manufacturing, and syngas generation reactors with zero nitrogen dilution.
Non-Ferrous Smelting & Glass Manufacturing
Supplies oxygen for copper, nickel, and lead flash smelters, as well as oxy-fuel glass melting furnaces to achieve higher combustion temperatures and lower NOx emissions.
Pulp & Paper Bleaching & Water Treatment
Generates oxygen for elemental chlorine-free (ECF) pulp delignification bleaching towers, ozone generation feed gas, and municipal wastewater aeration basins.
Information Required for Custom Engineering Quotes
To enable our project engineering team to calculate cold box sizing, distillation column diameters, compressor power requirements, and thermodynamic heat balances, buyers should provide the following baseline site parameters:
1. Required Oxygen Flow Rate: Gaseous oxygen demand (Nm3/h) and liquid oxygen co-production or bulk liquefaction rate (tons/day or L/h).
2. Required Oxygen Purity: Specified purity percentage (standard 99.5% or high-purity 99.8%) and maximum allowable impurity thresholds.
3. Battery Limit Delivery Pressure: Minimum required pipeline discharge pressure (MPa) for gaseous oxygen at the plant boundary.
4. Site Environmental Data: Annual maximum/minimum ambient temperature, relative humidity, atmospheric pressure (altitude), and cooling water specs.
5. Local Electric Utility Parameters: Available high-voltage electric power parameters (e.g., 6kV/10kV, 50Hz/60Hz) and electricity unit tariff for power optimization modeling.
Turnkey Execution, Cold Box Erection, Acceptance Testing & Maintenance
Suzhou Fengyun Fluid Technology Co., Ltd. delivers comprehensive EPCM project support. Our experienced field engineers guide clients through civil layout design, equipment transportation, cold box vertical lifting, perlite insulation filling, cold commissioning, and performance guarantee verification.
Field Cold Box Erection
Our installation specialists oversee vertical cold box lifting, column alignment, vacuum insulation powder filling, and cryogenic pipe manifold welding to ensure complete structural integrity and zero thermal leakage.
FAT & SAT Testing Standards
Factory Acceptance Testing (FAT) validates vessel hydro-testing, valve stroke actuation, and PLC panel logic. Site Acceptance Testing (SAT) verifies plant cooldown timing, gas purity achievement, flow capacity, and emergency shutoff interlocks.
Lifecycle O&M & IoT Support
We offer flexible long-term maintenance agreements, spare parts stocking, compressor overhauls, molecular sieve re-bedding, and 24/7 cloud IoT diagnostic monitoring to ensure continuous plant uptime.
Frequently Asked Questions (FAQ)
1. How does an internal compression cryogenic oxygen plant improve safety compared to external gaseous oxygen compression?
Internal compression utilizes submerged cryogenic liquid oxygen pumps located inside the cold box to raise liquid oxygen pressure prior to vaporizing it against high-pressure feed air in main plate-fin heat exchangers. This completely eliminates high-pressure gaseous oxygen compressors outside the cold box, removing the mechanical friction, high operating temperatures, and ignition risks associated with gaseous oxygen machinery while reducing routine compressor maintenance overhead.
2. What advantages does cryogenic oxygen generation offer over VPSA/PSA oxygen generators for heavy industry?
While VPSA/PSA systems are suited for lower volume, low-pressure applications with oxygen purity capped around 93% to 95%, cryogenic air separation delivers pure fractional distillation at -183°C. It effortlessly yields oxygen purities up to 99.8% with zero argon dilution. Furthermore, cryogenic systems offer much lower specific electrical energy consumption at flow rates above 2,000 Nm3/h and allow direct co-production of liquid oxygen and liquid nitrogen for strategic backup storage.
3. How does the automated DCS load-following system operate when factory oxygen consumption fluctuates?
Our automated Siemens DCS control system tracks downstream pipeline pressure and flow demand in real time. When factory oxygen consumption decreases, the system uses variable frequency drives (VFD) on feed air compressors and modifies guide vane angles on turbo expanders to turndown air intake. Simultaneously, column reflux ratios are automatically rebalanced, preserving oxygen purity while reducing electrical power consumption in direct proportion to gas demand.
4. What materials of construction are used in the cold box to ensure compatibility with high-purity liquid oxygen?
All cryogenic vessels, distillation column trays, liquid sumps, and piping manifolds contacting liquid or gaseous oxygen are fabricated from high-grade cryogenic aluminum alloys (such as 6061-T6 and 5083) or low-carbon austenitic stainless steels (SS304L and SS316L). All oxygen-wetted surfaces undergo specialized solvent degreasing and passivation treatments to ensure complete removal of hydrocarbons, grease, or particulate matter prior to assembly and testing.
5. What turnkey engineering services does Suzhou Fengyun Fluid Technology provide after equipment purchase?
As direct equipment manufacturers, we provide complete turnkey engineering services including site civil layout design, equipment fabrication, cold box vertical erection supervision, interconnecting piping, FAT/SAT acceptance testing, and operator training. Post-commissioning, clients benefit from 24/7 cloud IoT diagnostic monitoring, predictive maintenance alerts, lifetime OEM spare parts supply, and customized O&M service options.
