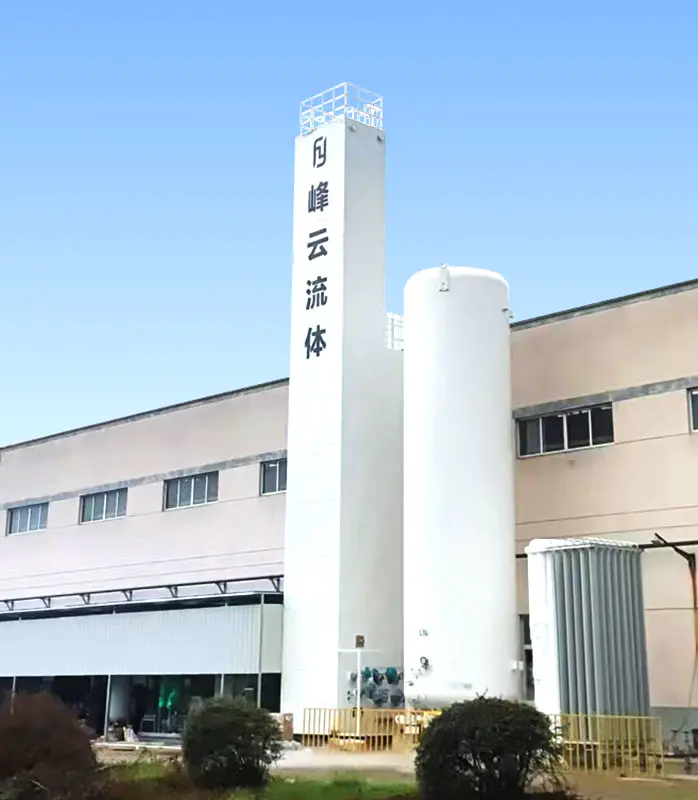

Custom Industrial Cryogenic Nitrogen Generation Systems & On-Site Nitrogen Plants
Suzhou Fengyun Fluid Technology Co., Ltd. is a premier equipment engineering manufacturer specializing in custom cryogenic nitrogen generation solutions for continuous industrial applications. As leading China cryogenic nitrogen generation system manufacturers and trusted on-site cryogenic nitrogen plant suppliers, we design, fabricate, deploy, and maintain high-efficiency cryogenic nitrogen generation units. Backed by our dedicated engineering team of 86 technical specialists, our installations convert atmospheric air into ultra-high-purity gaseous nitrogen (GAN) and liquid nitrogen (LIN) with oxygen impurity levels controlled down to sub-ppm thresholds.
Operating from our specialized production center, we manufacture full-spectrum cryogenic nitrogen separation infrastructures—combining energy-efficient rotary feed air compressors, temperature-swing adsorption molecular sieve purifiers, vacuum-brazed aluminum plate-fin heat exchangers, high-fractionation distillation cold boxes, and high-expansion refrigeration turbo expanders. Whether your facility requires continuous baseline pipeline gaseous nitrogen for chemical inerting or high-yield liquid nitrogen co-production for strategic reserve storage, our custom-engineered plants ensure superior thermodynamic power efficiency, strict pressure vessel code compliance, and predictable long-term utility economics.
Direct Factory Engineering Value, Quality Control & Performance Positioning
Direct partnership with an established industrial cryogenic nitrogen generator factory provides plant engineers, project directors, and procurement managers with complete mechanical customization, direct factory pricing, and lifetime technical support. Unlike pressure swing adsorption (PSA) or membrane separation systems that encounter purity caps around 99.99%, cryogenic nitrogen air separation achieves pure fractional distillation at -196°C, yielding continuous purity ratings up to 99.9999% (6N) suitable for advanced semiconductor fabrication and microelectronics packaging.
At Suzhou Fengyun Fluid Technology Co., Ltd., we control every stage of cryogenic component fabrication—from raw material inspection of low-temperature aluminum alloys and austenitic stainless steels to automated orbital welding, vacuum insulation testing, and factory acceptance loop checks. By delivering on-site gaseous and liquid nitrogen generation assets directly to your battery limit, we eliminate recurring bulk liquid road transport costs, cylinder rental fees, and product boil-off evaporation losses.
Ultra-High Purity Separation (Up to 6N)
Multi-stage cryogenic distillation column trays and high-density structured aluminum packing isolate pure nitrogen gas while stripping residual oxygen down to sub-ppm concentration limits (O2 ≤ 0.1-1 ppm).
Optimized Specific Power Efficiency
Our thermodynamic cycle design pairs low-pressure single or double distillation columns with high-efficiency turbo expanders, minimizing electrical power consumption (kWh per Nm3 nitrogen generated) across all load conditions.
Automated Variable Load Adaptation
Siemens PLC and DCS control integration dynamically alters compressor VFD speeds and guide-vane angles, seamlessly modulating nitrogen generation between 50% and 110% of design capacity to match real-time factory demand.
Selectable Cryogenic Nitrogen Generator Configurations & Product Series
To accommodate varying production footprints, utility constraints, and product gas requirements, Suzhou Fengyun Fluid Technology presents a categorized lineup of cryogenic nitrogen system architectures. Each series represents a proven, selectable engineering baseline:
Series 1: Low-Pressure Single-Column Gaseous Nitrogen (GAN) Systems
Optimized for general industrial applications requiring continuous gaseous nitrogen pipeline supply at highly economical power consumption rates. Utilizes a streamlined single-column distillation process with waste gas expansion refrigeration.
1. Baseline Pipeline Industrial Nitrogen Plant
Supplies steady gaseous nitrogen to chemical reactors, metal heat treatment furnaces, and pharmaceutical storage tanks. Features low operating pressure, low noise, and minimal maintenance intervention requirements.
Technical Specs: Nitrogen Purity: 99.9% to 99.999% (3N to 5N); Flow Capacity: 500 Nm3/h to 15,000 Nm3/h; Delivery Pressure: 0.5 to 1.0 MPa.
2. High-Pressure Waste Gas Expansion Nitrogen System
Incorporates waste oxygen-enriched air expansion to drive refrigeration, enabling higher nitrogen discharge pressures directly from the cold box without requiring secondary gaseous nitrogen booster compressors.
Technical Specs: Nitrogen Purity: 99.999%; Discharge Pressure: 1.0 to 1.6 MPa; Integrated automatic purity bypass valve manifold.
Series 2: Double-Column Ultra-High-Purity Nitrogen Plants (6N Electronic Grade)
Engineered specifically for microelectronics, semiconductor wafer fabs, solar cell photovoltaics, and flat panel display production lines requiring absolute freedom from oxygen, moisture, and carbon impurities.
1. Semiconductor Wafer Fab Inerting Nitrogen Plant
Features double-rectification columns, electropolished stainless steel internal piping, and continuous trace oxygen gas analyzers to guarantee non-stop 6N pure nitrogen carrier gas for chemical vapor deposition (CVD) and lithography chambers.
Technical Specs: Nitrogen Purity: 99.9999% (O2 ≤ 0.1 ppm, H2O ≤ 0.5 ppm); Flow Capacity: 2,000 Nm3/h to 30,000 Nm3/h; Continuous online analyzer recording.
2. Solar Photovoltaic & Silicon Ingot Growth Nitrogen Generator
Provides reliable ultra-pure nitrogen for monocrystalline silicon ingot pulling furnaces and solar cell annealing lines, eliminating silicon oxidation during high-temperature thermal cycles.
Technical Specs: Nitrogen Purity: 99.9995% to 99.9999%; Dual-feed redundancy; Emergency high-pressure liquid nitrogen vaporization backing.
Series 3: Liquid Nitrogen (LIN) Generation Plants & Merchant Liquefiers
Designed for regional liquid gas suppliers and continuous processing facilities requiring large-volume liquid nitrogen outputs. Operating as a dedicated liquid nitrogen generation plant factory, we build high-capacity liquefaction cycles with heavy booster refrigeration turbines.
1. High-Yield Merchant Liquid Nitrogen Liquefiers
Incorporates secondary nitrogen recycle compressors and multi-stage expansion turbines to maximize liquid conversion ratios. Supplies bulk vacuum-insulated liquid nitrogen storage tanks for road tanker filling and merchant distribution.
Technical Specs: Liquid Output Capacity: 30 tons/day to 500 tons/day; Liquid Nitrogen Purity: 99.999%; Integrated automated tanker bay metering system.
2. Dual GAN/LIN Co-Production Nitrogen Plants
Provides baseline gaseous nitrogen directly to factory pipelines while diverting 10% to 30% of total plant capacity into liquid nitrogen storage tanks, building an on-site strategic liquid buffer for peak demand shaving.
Technical Specs: Dual product streams; Flexible liquid production ratio tuning; Automatic vaporization skid start on main power failure.
Series 4: Modular Containerized & Skid-Mounted On-Site Nitrogen Generators
Engineered for rapid field installation, overseas export, and temporary project sites. Built inside our custom industrial cryogenic nitrogen generator factory, these plug-and-play skids minimize site civil construction requirements.
Modular Plug-and-Play On-Site Nitrogen Generator Skids
Pre-assembled on rigid structural steel baseframes with fully integrated piping, electrical wiring, PLC control panels, and insulation casing. Fully tested prior to factory dispatch for quick flange-to-flange site integration.
Technical Specs: Capacity Scale: 300 Nm3/h to 3,000 Nm3/h; 85% factory pre-commissioned; Touchscreen operator HMI with remote cloud gateway.
Technical Specifications & Operating Parameters Matrix
The following matrix summarizes key technical parameters, output gas purity thresholds, capacity scales, working pressures, and material selections across our primary cryogenic nitrogen plant lines:
| System Configuration |
Product Gas Phase |
Achievable Nitrogen Purity |
Flow Capacity Range |
Working Discharge Pressure |
Primary Structural Materials |
Automation & PLC System |
| Single-Column Pipeline GAN Plant |
Gaseous Nitrogen (GAN) |
99.99% - 99.999% (O2 ≤ 10 ppm) |
500 to 15,000 Nm3/h |
0.5 - 1.0 MPa |
Aluminum Alloy 6061-T6 / SS304L |
Siemens S7-1200 / Touch HMI Panel |
| Double-Column 6N Wafer Fab ASU |
Ultra-Pure GAN / LIN Buffer |
99.9999% (O2 ≤ 0.1 ppm) |
2,000 to 30,000 Nm3/h |
0.6 - 1.6 MPa |
Electropolished SS316L / Brazed Al |
Redundant DCS + Dual Analyzer Interlock |
| Full Merchant Liquid Nitrogen Plant |
100% Liquid Nitrogen (LIN) |
99.999% (5N Liquid Grade) |
30 to 500 tons/day liquid |
0.2 - 0.8 MPa tank filling |
Cryogenic Stainless Steel Inner / Carbon Steel Shell |
Automated Tank Farm Metering + IoT Gateway |
| Dual GAN / LIN Co-Production Unit |
Gaseous + Liquid Nitrogen |
99.999% (O2 ≤ 5 ppm) |
1,000 to 20,000 Nm3/h |
0.6 - 1.2 MPa pipeline |
Aluminum 5083 Column / SS304 Manifolds |
Siemens S7-1500 PLC + WinCC SCADA |
| Modular Containerized Generator Skid |
Gaseous Nitrogen Skid |
99.99% - 99.999% |
300 to 3,000 Nm3/h |
0.6 - 1.0 MPa |
Structural Carbon Steel Base / Al Cold Box |
Integrated Touch HMI + Remote Diagnostics |
Target Application Scenarios & Required Data for Technical Engineering Quotes
Cryogenic nitrogen generation is the preferred gas supply technology for large-scale industrial operations requiring high flow velocity, extreme gas purity, and low unit costs. As established industrial nitrogen gas production plant manufacturers, we tailor our plant designs to match the operational demands of major sectors:
Semiconductor Fabs & Electronics Packaging
Delivers continuous 6N ultra-pure nitrogen gas for chamber purging, wafer transfer, chemical vapor deposition, and lead-frame soldering without oxidation defects.
Petrochemical Refineries & Chemical Synthesis
Provides high-pressure nitrogen for hydrocarbon tank blanketing, pipe line drying, catalyst pneumatic transfer, and emergency flare stack purging.
Metallurgy & Stainless Steel Bright Annealing
Supplies non-oxidizing protective atmosphere nitrogen streams for metal heat treatment furnaces, laser cutting assist gas, and powder metallurgy sintering.
Food Processing & Cold Chain Logistics
Generates liquid nitrogen for cryogenic flash freezing tunnels, modified atmosphere packaging (MAP), and bulk liquid reefer transport.
Information Required to Formulate a Technical Proposal
To assist our engineering team in calculating cold box dimensions, column tray numbers, air compressor displacement, and power consumption, project managers should provide the following baseline inputs:
1. Product Gas Flow Rate: Required gaseous nitrogen capacity (Nm3/h) and liquid nitrogen co-production rate (tons/day or L/h).
2. Required Nitrogen Purity: Minimum purity percentage (e.g., 99.999% or 99.9999%) and maximum allowable oxygen ppm limit.
3. Battery Limit Delivery Pressure: Required gaseous nitrogen pipeline discharge pressure (MPa) at the plant outlet boundary.
4. Site Environmental Conditions: Maximum/minimum ambient air temperature, atmospheric pressure (altitude), relative humidity, and cooling water specs.
5. Site Electrical Utility: High-voltage electric power parameters (e.g., 6kV/10kV, 50Hz/60Hz) and electricity unit tariff for power optimization modeling.
Turnkey Execution, Erection Supervision, FAT/SAT Acceptance & Maintenance
Suzhou Fengyun Fluid Technology Co., Ltd. provides complete EPCM project support for cryogenic nitrogen installations. Our technical engineers supervise every project phase—from civil foundation layout and cold box vertical erection to field manifold welding, cold commissioning, and performance guarantee testing.
Cold Box Erection & Insulation
Our field specialists direct vertical cold box positioning, column precision alignment, main air piping connections, and perlite insulation packing to eliminate cold spots and ensure long-term thermal isolation.
FAT & SAT Acceptance Protocol
Factory Acceptance Testing (FAT) validates vessel pressure compliance, valve actuation, and PLC logic. Site Acceptance Testing (SAT) certifies system cooldown timing, gas purity achievement, flow capacity, and automatic safety shutoff loops.
Lifecycle O&M & Remote Diagnostics
We offer comprehensive maintenance agreements, spare parts stocking, compressor overhauls, molecular sieve re-bedding, and 24/7 cloud IoT diagnostic monitoring to guarantee uninterrupted gas production uptime.
Frequently Asked Questions (FAQ)
1. What makes cryogenic nitrogen generation superior to PSA and Membrane systems for large-scale industrial applications?
While PSA and Membrane technologies are suitable for small-scale, lower-purity applications, cryogenic nitrogen air separation achieves pure fractional distillation at -196°C. It effortlessly produces ultra-high-purity nitrogen up to 99.9999% (6N) with oxygen levels below 0.1 ppm. Furthermore, cryogenic systems exhibit significantly lower specific power consumption (kWh per Nm3) at capacities exceeding 1,000 Nm3/h and offer the capability to co-produce liquid nitrogen for emergency backup storage.
2. How does the automated load-following system reduce electrical operating costs during off-peak factory hours?
Our automated PLC/DCS control system continuously monitors downstream pipeline pressure and flow demand. When factory gas consumption decreases, the system uses variable frequency drives (VFD) on feed air compressors and modifies guide vane angles on turbo expanders to reduce air intake. Simultaneously, column reflux ratios are automatically rebalanced, preserving nitrogen purity while reducing electrical power consumption in direct proportion to gas demand.
3. Can an on-site gaseous cryogenic nitrogen plant also fill liquid nitrogen emergency storage tanks?
Yes. We offer custom dual GAN/LIN co-production configurations that divert a fraction of cold box refrigeration capacity into liquid nitrogen production. Liquid nitrogen is accumulated in vacuum-insulated storage tanks equipped with automated pressure-building vaporizers. In the event of an electrical outage or sudden plant shutdown, the liquid reserve automatically vaporizes into the main distribution header, guaranteeing 100% uninterrupted gas supply to critical processes.
4. What materials of construction are used in the cold box to withstand sub-zero cryogenic temperatures?
All cold box equipment operating at sub-zero temperatures—including distillation column vessels, tray assemblies, liquid manifolds, and plate-fin heat exchangers—are fabricated from cryogenic aluminum alloys (such as 6061-T6 and 5083) or low-carbon austenitic stainless steels (SS304L and SS316L). These materials do not undergo cryogenic embrittlement and retain high ductility and toughness at -196°C. The outer cold box steel shell is packed with expanded perlite powder to maintain complete thermal isolation.
5. What turnkey project services does Suzhou Fengyun Fluid Technology provide after equipment purchasing?
As direct equipment manufacturers, we provide end-to-end turnkey engineering services including site civil layout design, equipment manufacturing, cold box vertical erection supervision, interconnecting piping, FAT/SAT acceptance testing, and operator training. Post-commissioning, clients benefit from 24/7 cloud IoT diagnostic monitoring, predictive maintenance alerts, lifetime OEM spare parts supply, and long-term O&M service options.
